Multiple voltage options to meet different construction needs.
Heavy duty industrial hoover equipped with turbocharged motor for long-time use for large dust.
Height adjustable, easy to transport.
Mute wear-resistant reliable universal wheels and casters.

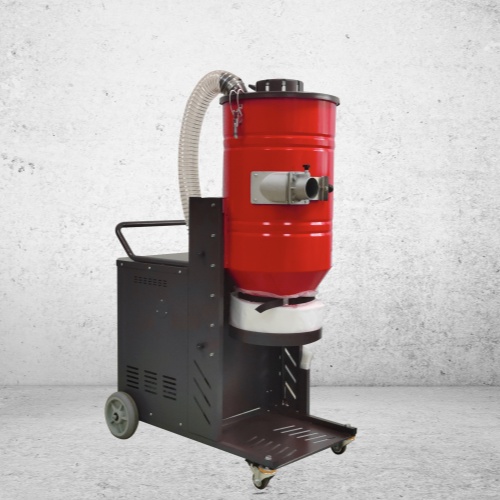

This is a single-phase two-stage filter bag vacuum cleaner. Two-stage filtration, the first-stage filtration unit uses Toray polyester fiber filter cartridges, and the second-stage filtration unit uses HEPA H13 filter cartridges. The filtration accuracy of dust with a particle size of 0.3UM reaches more than 99%. It is developed for continuous work, small dust particle size, and large dust volume. The height of the machine is adjustable, which is convenient for special transportation, reduces transportation costs, and saves space during transportation.
Technical Parameters:
| Model | RV411 | RV415 | RV416 | RV417 | RV418 |
| Voltage | 110 | 380 | 480 | 380 | 480 |
| Phase | 1 | 3 | 3 | 3 | 3 |
| Max air flow (m³/h) | 265 | 530 | 620 | 530 | 620 |
| Max airflow (CFM) | 450 | 312 | 365 | 312 | 365 |
| Max vacuum (mbar) | 240 | 300 | 320 | 320 | 350 |
| Rated input power (Hp丨kW) | 2.1丨1.6 | 7.4丨5.5 | 8.4丨6.3 | 10丨7.5 | 11.5丨8.6 |
| HZ | 50/60 | ||||
| Filter area (ft²丨㎡) | 38丨3.5 | ||||
| Filter capacity | Filter capacity: 0.3um, efficiency＞99.5% | ||||
| Filter cleaning | Manual jet-pulse | ||||
| Filter type | H12 HEPA filter TORAY polyester | ||||
| Dimension (inch丨mm) | 55*26*56丨1390*650*1410 | ||||
| Weight (lbs丨kgs) | 330丨150 | ||||
Equipped with cyclone separator, can collect 95% dust
Certified HEPA H12 filter captures up to 99.99% of particles at 0.3 microns(H12)
3 phase Ametek motors with independent on/off
Drop-down dust collection in continuous bag system
Certified HEPA H12 filter captures up to 99.99% of particles at 0.3 microns(H12)
Equipped with turbe motor, can run 24 hours a day
Drop-down dust collection in continuous bag system
Automatic jet-pulse cleaning system given by air compressor
2 stage filtration
Certified massive filter captures up to 99.99% of particles at 0.3 microns(H12)
3 phase Ametek motors with independent on/off
Drop-down dust collection in continuous bag system
Compact and height adjustable.
Manual jet-pulse filter cleaning,optional motor丨drive and timed auto jet丨pulse.
1mm carbon steel barrel, durable and not deform from strong suction.
Reliable silent slides and solid frame for height adjustment.
